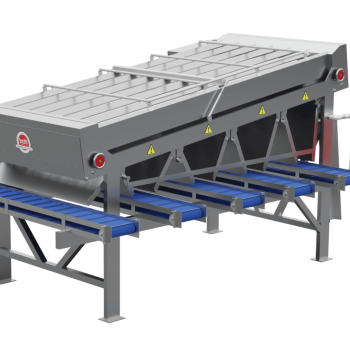

Wash Tank
Inspection Belt

Heavy duty stainless steel construction with open grid polypropylene belt system with micro product supports with a 6ft inspection belt.

Made and Designed in the USA

Specification Technology:

Shrimp Process: 6000 Per Hour
Material: 304L Stainless Steel
Motor: 3 Phase - 230/460V - 50/60Hz
Energy Consumption: 3.0 Kw
Overall Dimension Machine: Length:18’4” : Width: 7.0 Height: 3’8’’
Weight: 4200 lbs


Chute For Discharge to Deheading Table Motor 3 Phase Motor High Duty Speed Reducer 50.1
Control For Speed FVD Control Volume Pedal 392 Gallon Tanks Capacity
Aluminum Diamond Plate Steps Adjustable Ice Baffle 3HP Water Pump
High Flow Filter PP 20% Open Belting 6 ft Inspection to 10 ft Inspection Work Platform
Conveyor 2’’Overflow 1’’ Jet Wash Nozzles

Gap adjustment mechanism is easy to operate, clean, and maintenance. Saving water consumption. Assuring 80-90% accuracy in central sizes. Shrimp are distributed evenly before transferring to size grading system and avoiding going back the tank.

Get a Quote

6A Wash Tank
